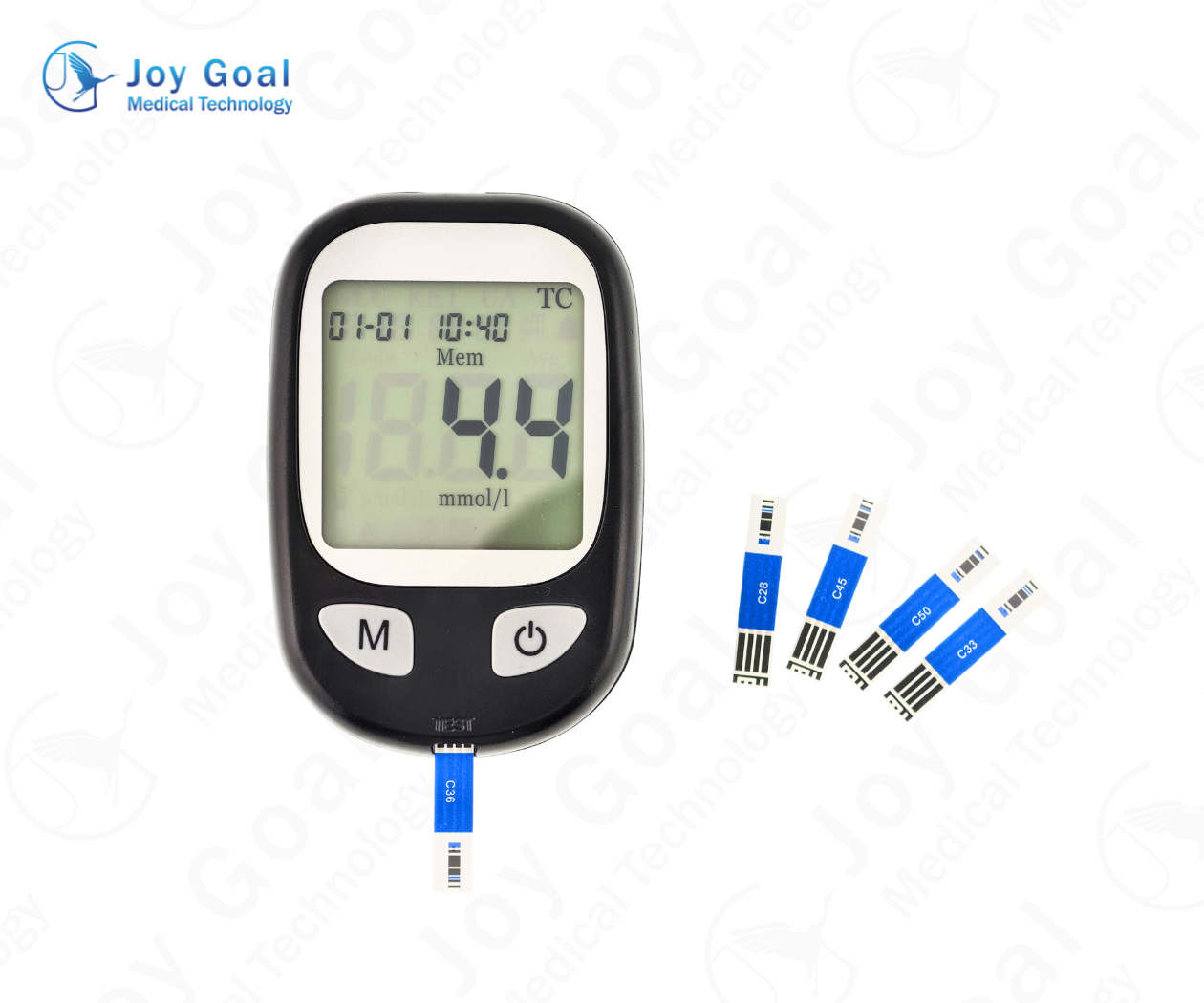

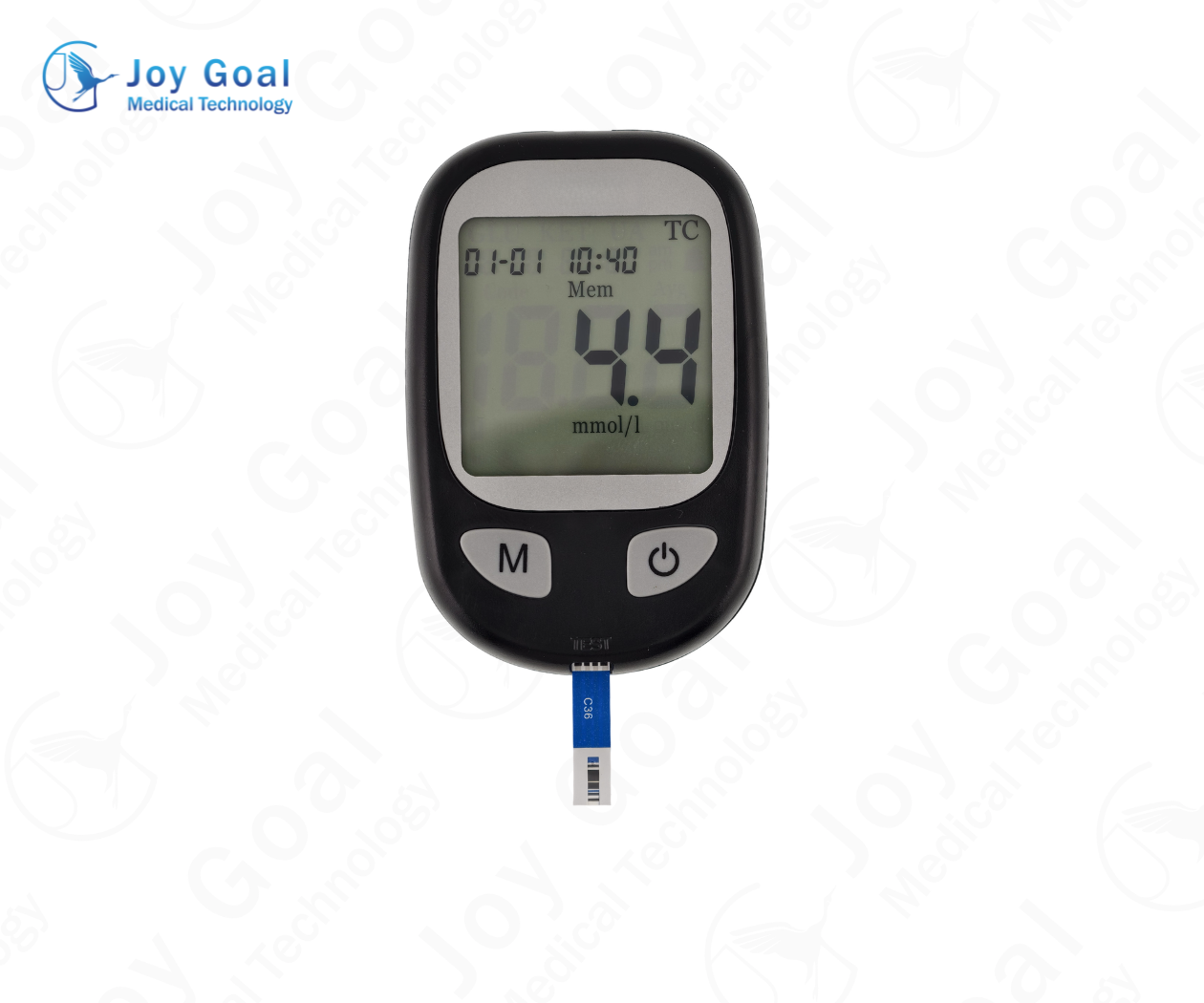

Multi-function Analyzer(Blood Glucose, Uric Acid, Blood Ketone, Total Cholesterol) (GUKC-102)
introduction
| Modle | GUKC-102 |
|---|---|
| Analysis Items | Uric Acid(UA), Glucose, Ketone, Total Cholesterol(TC) |
| Specimen | Finger blood |
| Features | Quick Test, Wide Test Range, Accurate, Quality Assurance |
| Power Source | 2*AAA batteries |
Feature
Mrico Specimen
1 drop of finger blood
Fast Test
Glucose: 5 seconds
Uric acid: 30 seconds
Blood ketone: 5 seconds
Total cholesterol: 25 seconds
Long-Endurance
6 months or approximately 1,000 tests
Wide Range
Maximum measurement range
in same function POCT meter
Accurate
Same level of accuracy with Biochemical Analyzer
Intelligent Data
Average values of records from the last 7, 14 or 28 days
Quality Assurance
Excellent quality and advanced
technology
Multi-function Analyzer(Blood Glucose, Uric Acid, Blood Ketone, Total Cholesterol) (GUKC-102) is designed to quantitatively measure glucose,uric acid , blood ketone or total cholesterol with fresh capillary whole blood or venous whole blood. The system is intended for use outside the human body as an aid to monitor the effectiveness of diabetes control.
The meter is not used for the diagnosis of the diabetes or test of newborns. To ensure accurate results from your meter, please follow these guidelines:
To ensure accurate results:
• Read instructions before use.
• The meter should only be used with test strips which are the same trade mark as the meter
• For in vitro diagnosis only. Your meter can only be used for in vitro testing. For professional use.
• Do not change your medication or treatment plan without the permission of doctor.
• Keep out of reach of children.
• Please use the meter in the way suggested by the manufacturer, or the meter may be impaired.
Principle of measurement
The test is based on electrochemical sensor technology.
The meter measures the electrical current generated by the reaction of glucose,uric acid,blood ketone,total cholesterol with the reagent of the strip,and displays the corresponding blood glucose,uric acid,blood ketone and total cholesterol level. The intensity of the current produced by the reaction depends on the amount of glucose ,uric acid ,blood ketone or total cholesterol in the blood sample.
Main Features of Blood Glucose Monitoring System
• Pre-suction siphon designed test strip, easy and convenient to use
• Tiny blood sample
• Fast measuring time
• Easy to read large LCD
• Automatic 7, 14 & 28 day averages
Specfication
| Feature | Specifications |
|---|---|
| Test Time | Glucose: 5 seconds Uric acid: 30 seconds Blood ketone: 5 seconds Total cholesterol: 25 seconds |
| Measurement Range | Glucose:20~600mg/dL, 1.1~33.3mmol/L; Uric acid:3~20mg/dL, 179~1190μmol/L; Blood ketone:0~83.3 mg/dL, 0~8mmol/L; Total cholesterol:2.6~11.6mmol/L, 100~450mg/dL; |
| Specimen | Glucose: Approximate 1 microlitre; Uric acid: Approximate 1.5 microlitre; Blood ketone: Approximate 1 microlitre; Total cholesterol: Approximate 1 microlitre; |

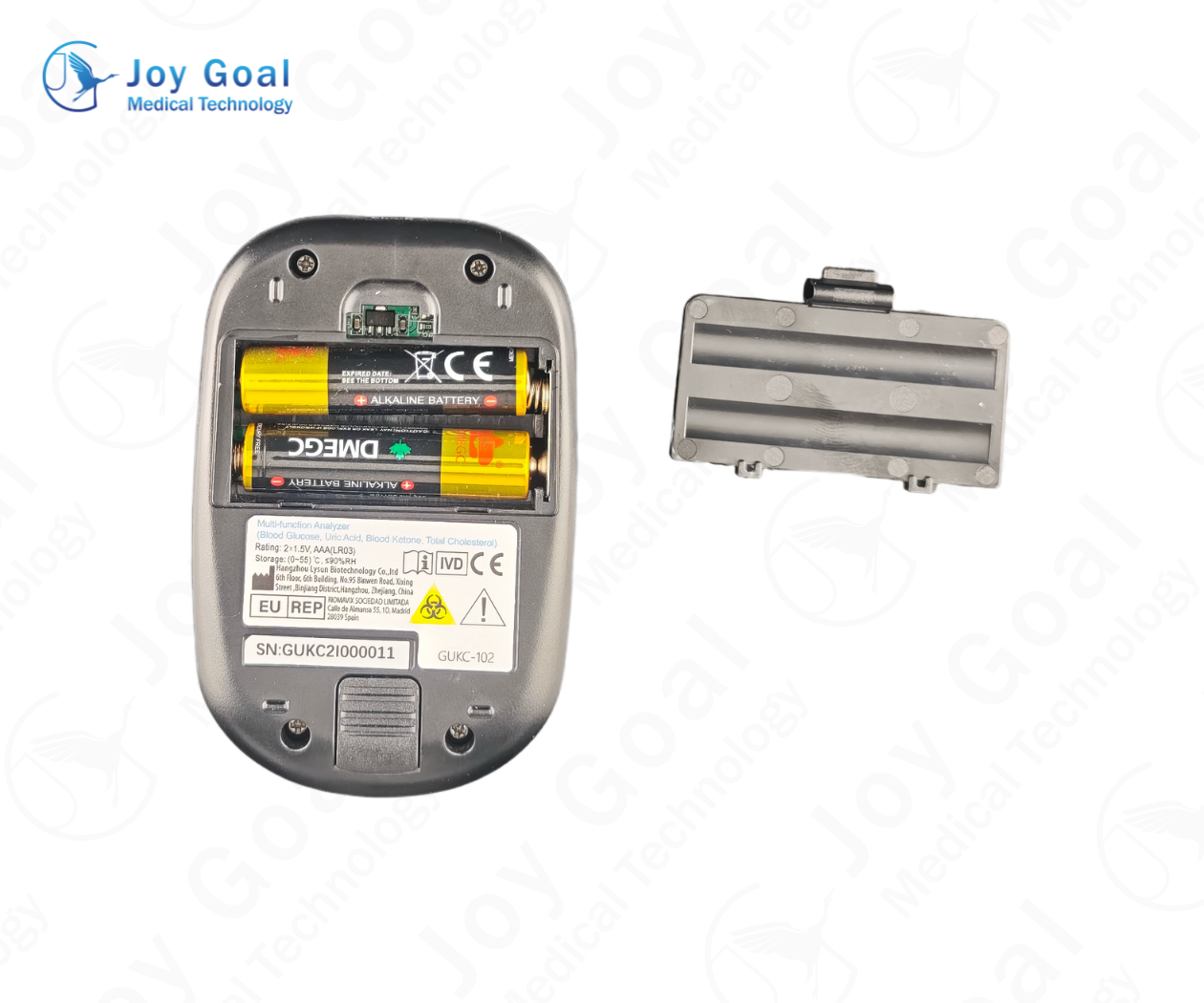

| Power Source | 2*AAA bateries; 6 months or approximately 1,000 tests; |
| Units of Measurement | mmol/l,μmol/l or mg/dl; Non-switchable unit |
| Memory | Glucose:500 records Uric acid:500 records Blood ketone: 500 records Total cholesterol:500 records |
| Automatic Shut Off | After 3 minute of inactivity |
| Meter Size | (86.6*57*18.8)mm(L*W*H) |
| Weight | Approximately 50 g (excluding battery) |
| System Operating Conditions | 5℃~45℃; ≤80%RH; indoor only |
| Methodology | Electrochemistry |
| Meter storage and transportationt conditions | 0 - 55°C; ≤90% RH |

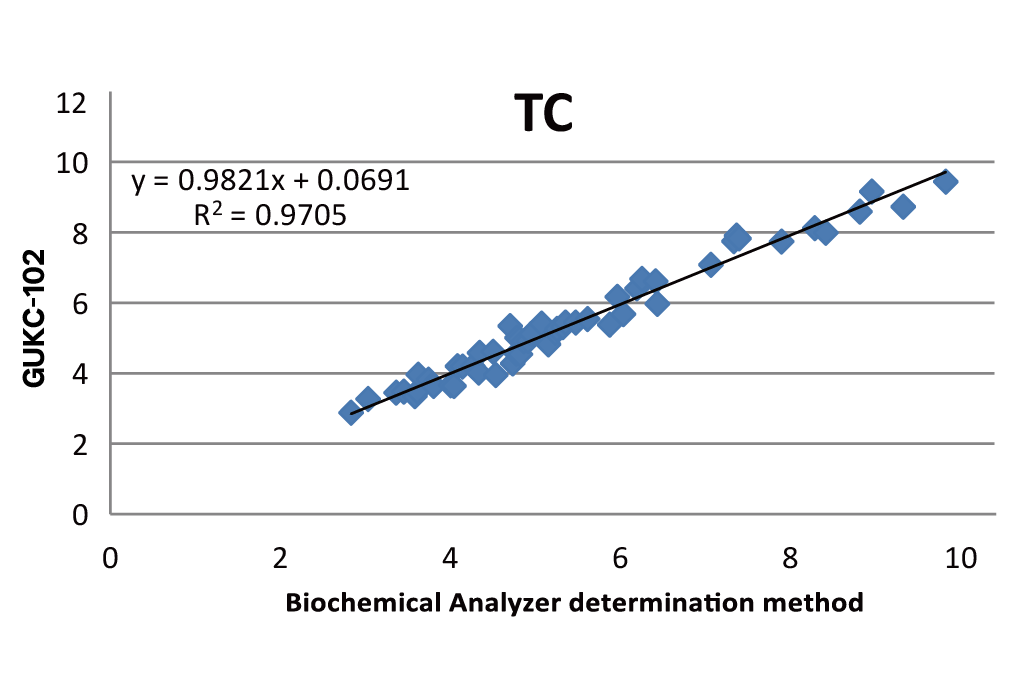

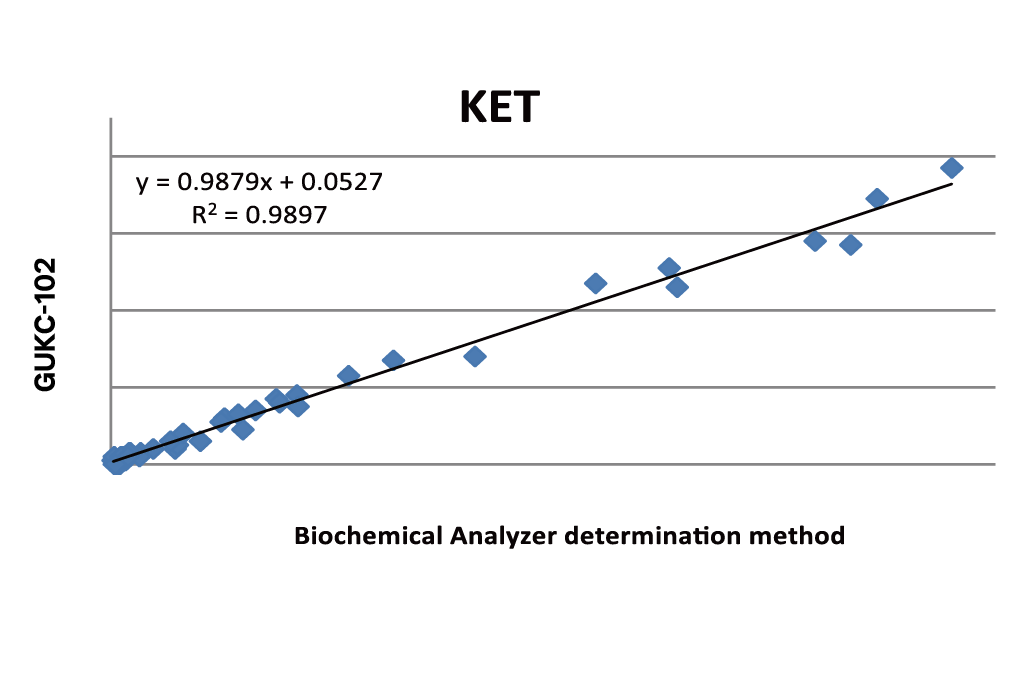

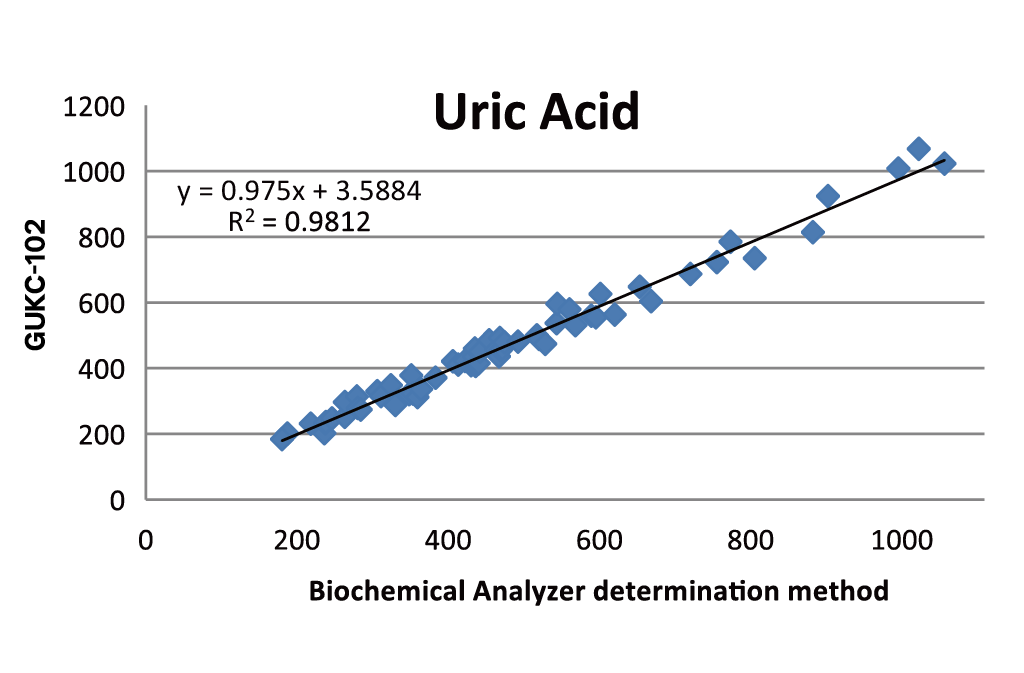

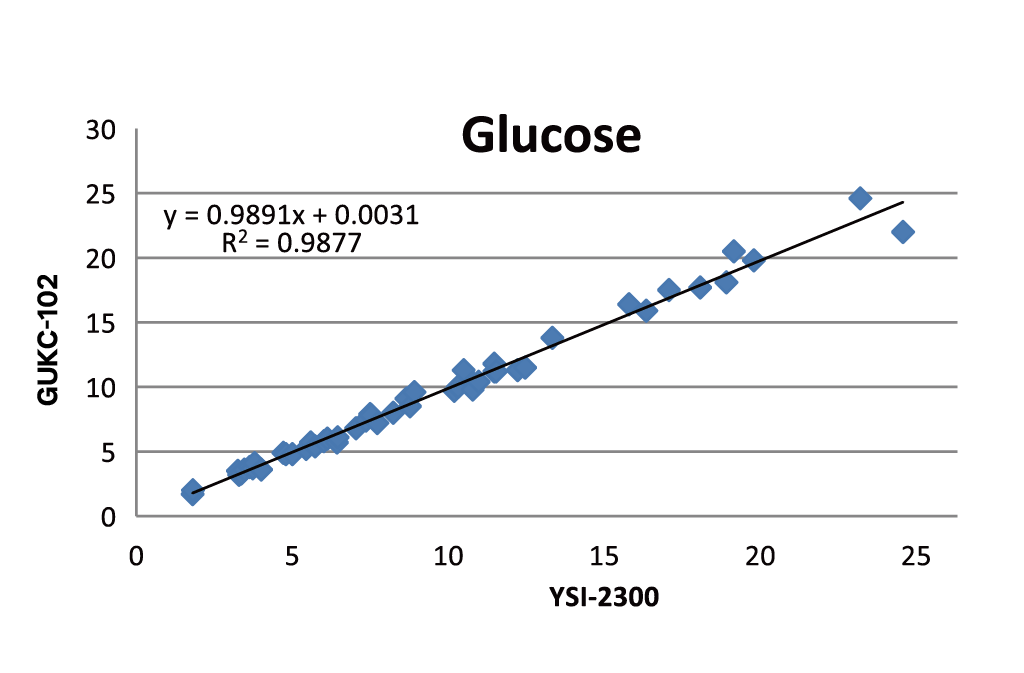

Accurate
Procedure

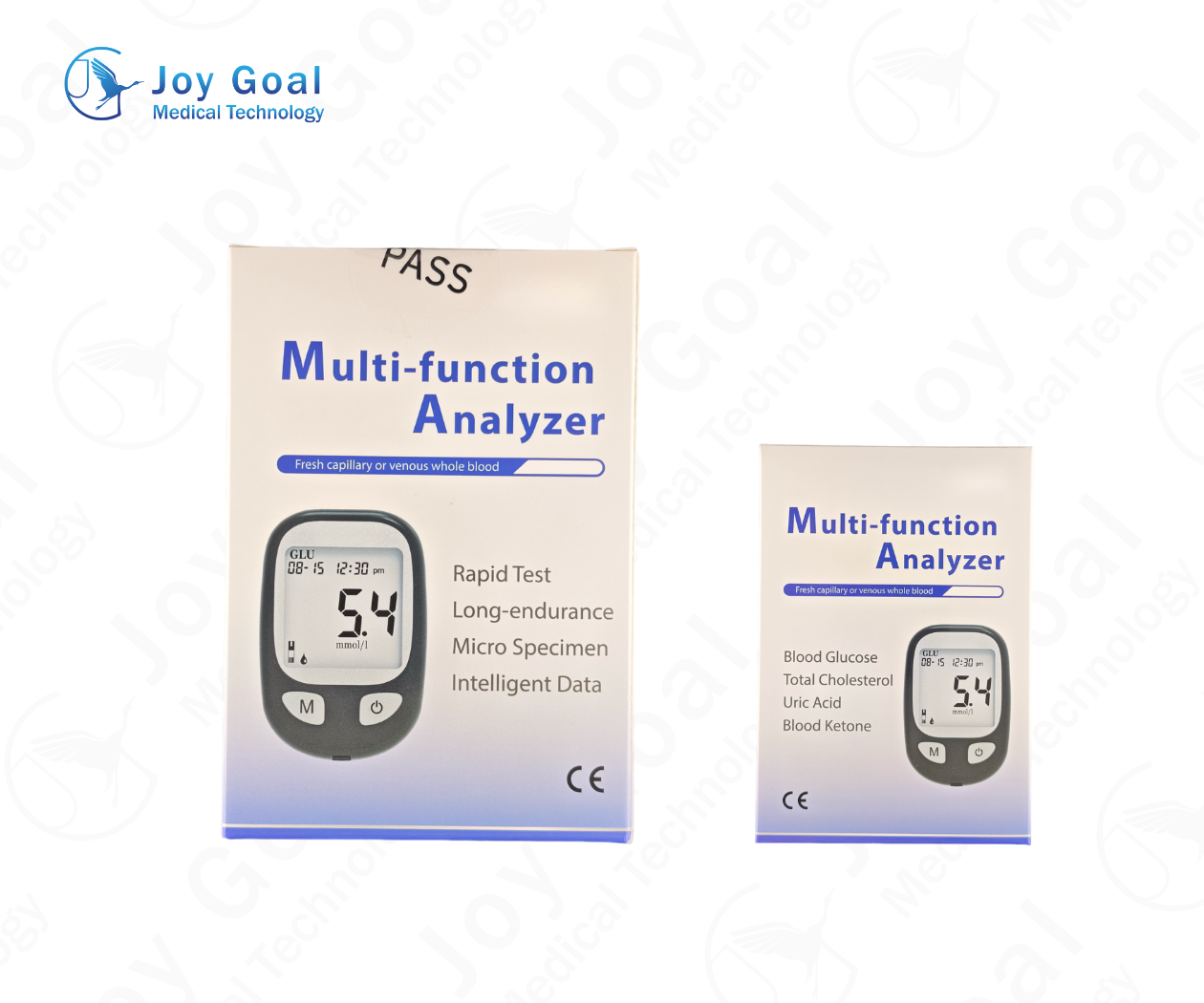

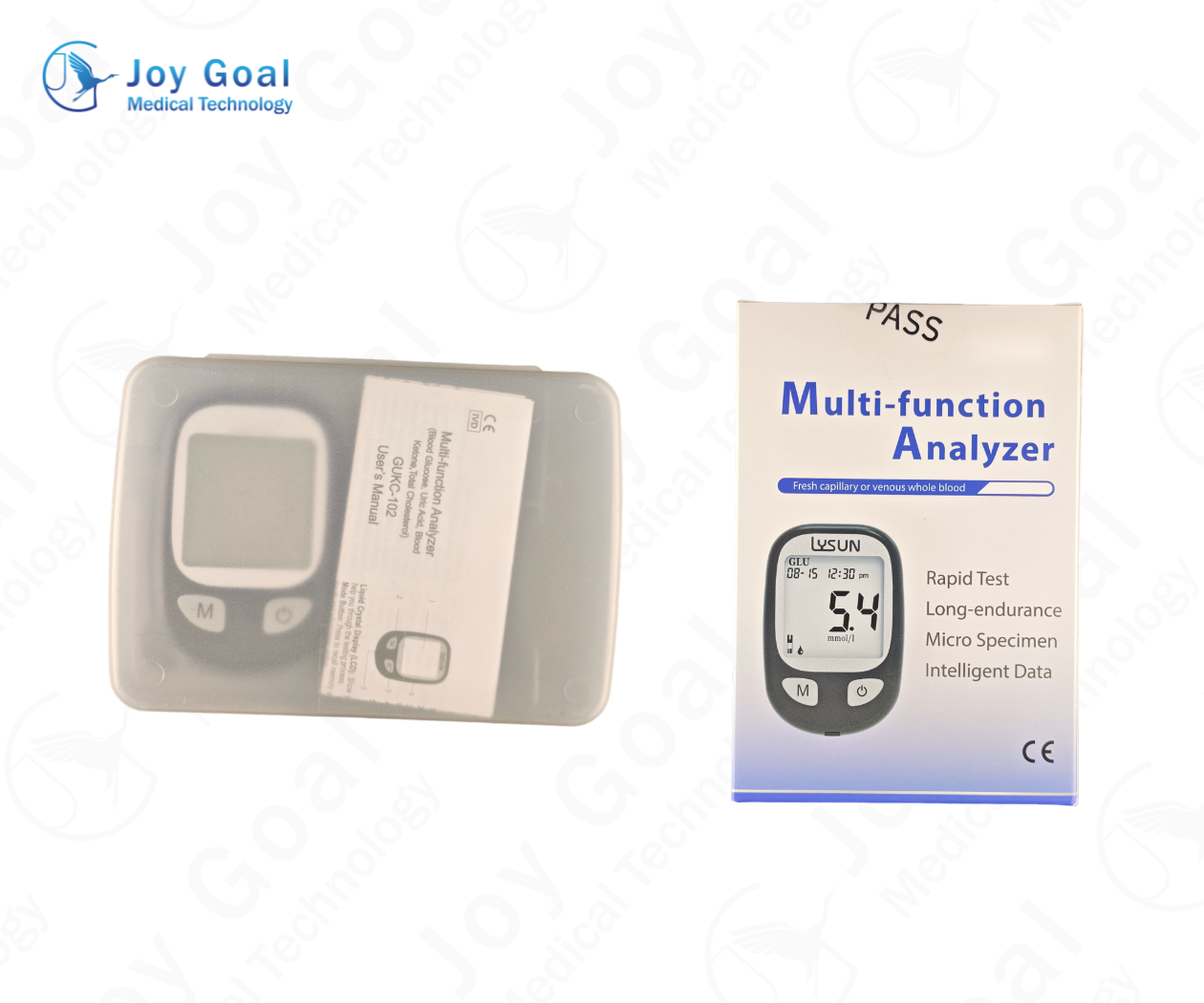

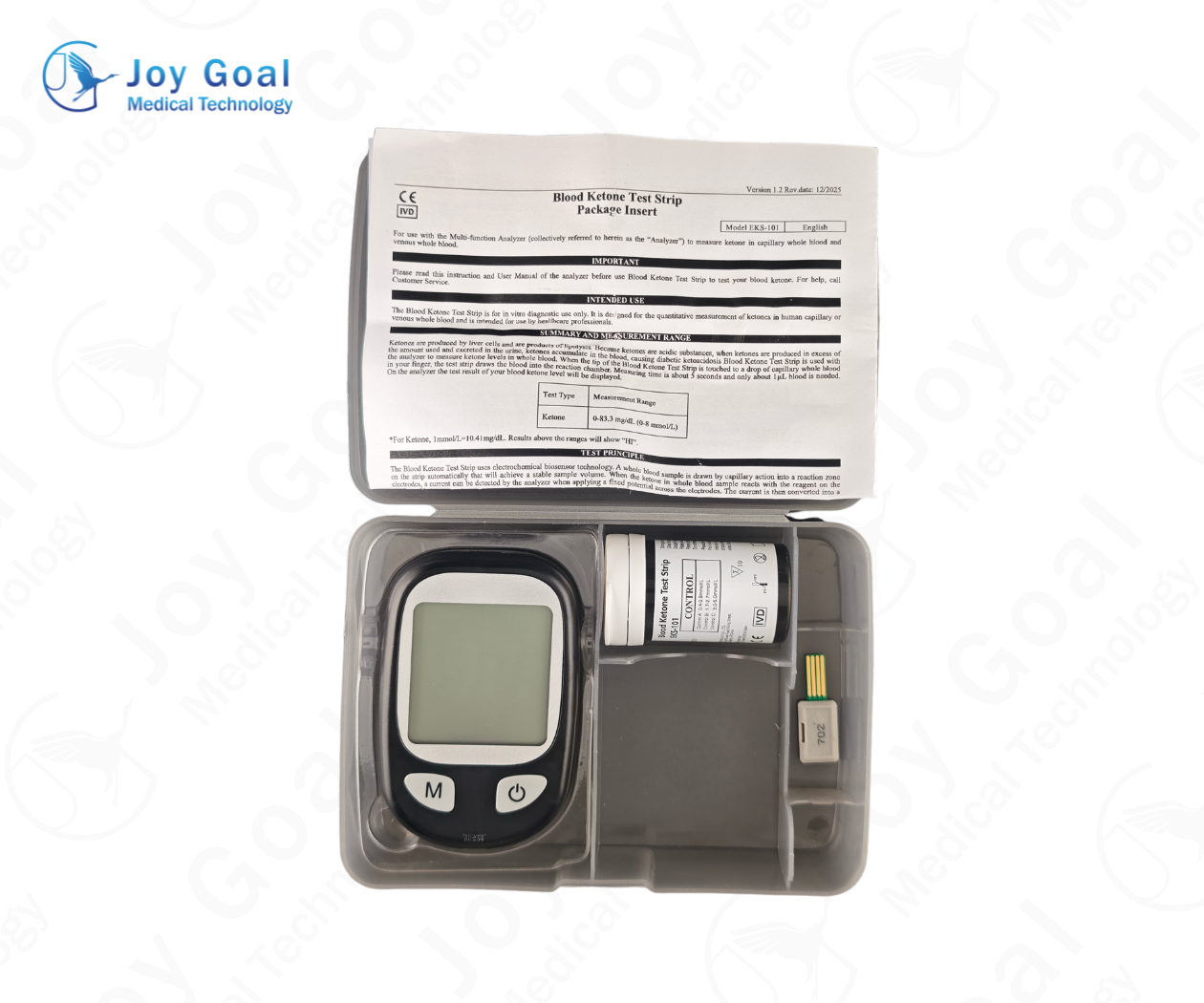

Packing
