Feature
Mrico Specimen
1 drop of finger blood
Fast Test
Glucose: 5 seconds
Uric acid: 30 seconds
Blood ketone: 5 seconds
Long-Endurance
6 months or approximately 1,000 tests
Wide Range
Maximum measurement range
in same function POCT meter
Accurate
Same level of accuracy with Biochemical Analyzer
Intelligent Data
Average values of records from the last 7, 14 or 28 days
Quality Assurance
Excellent quality and advanced
technology

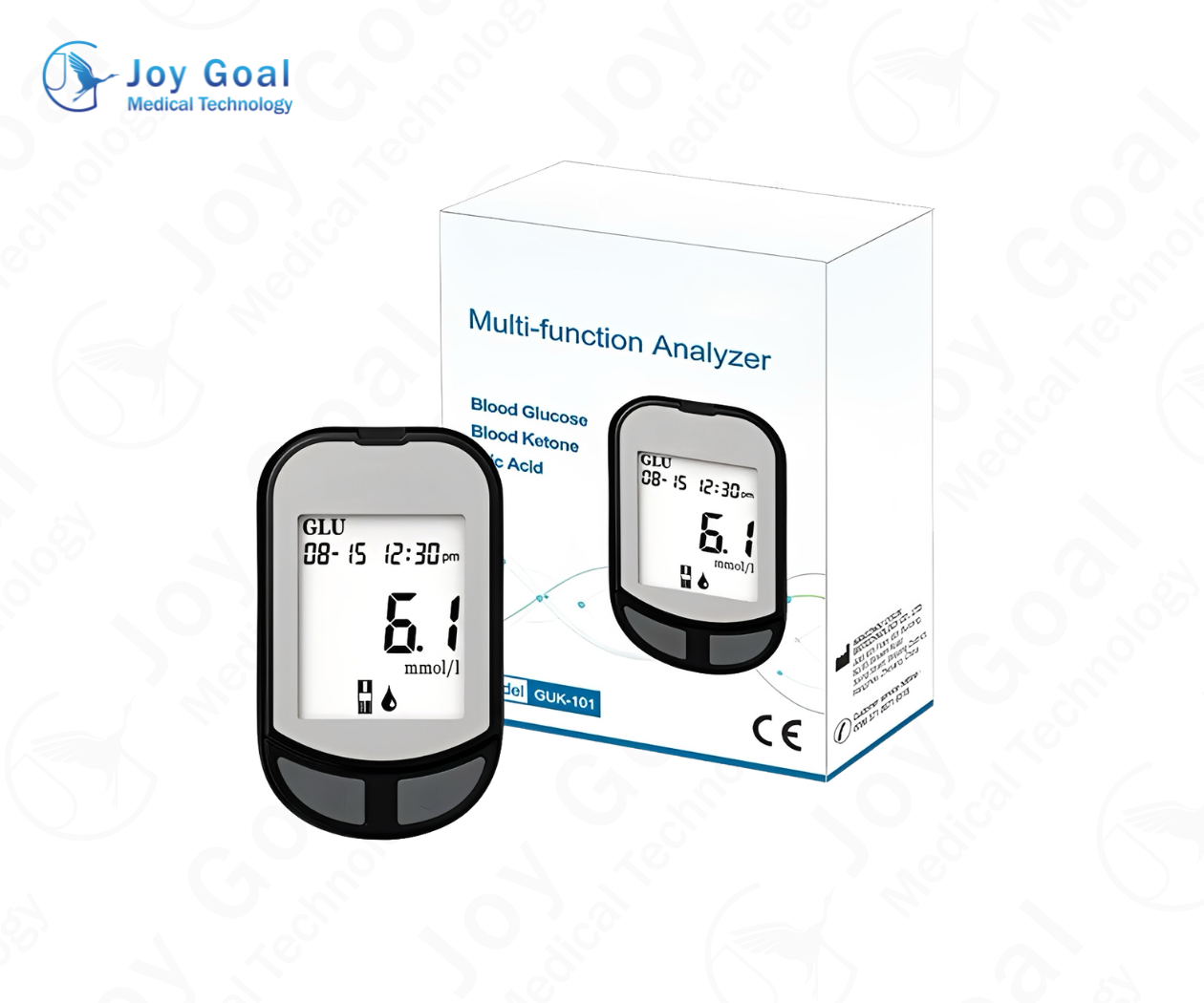

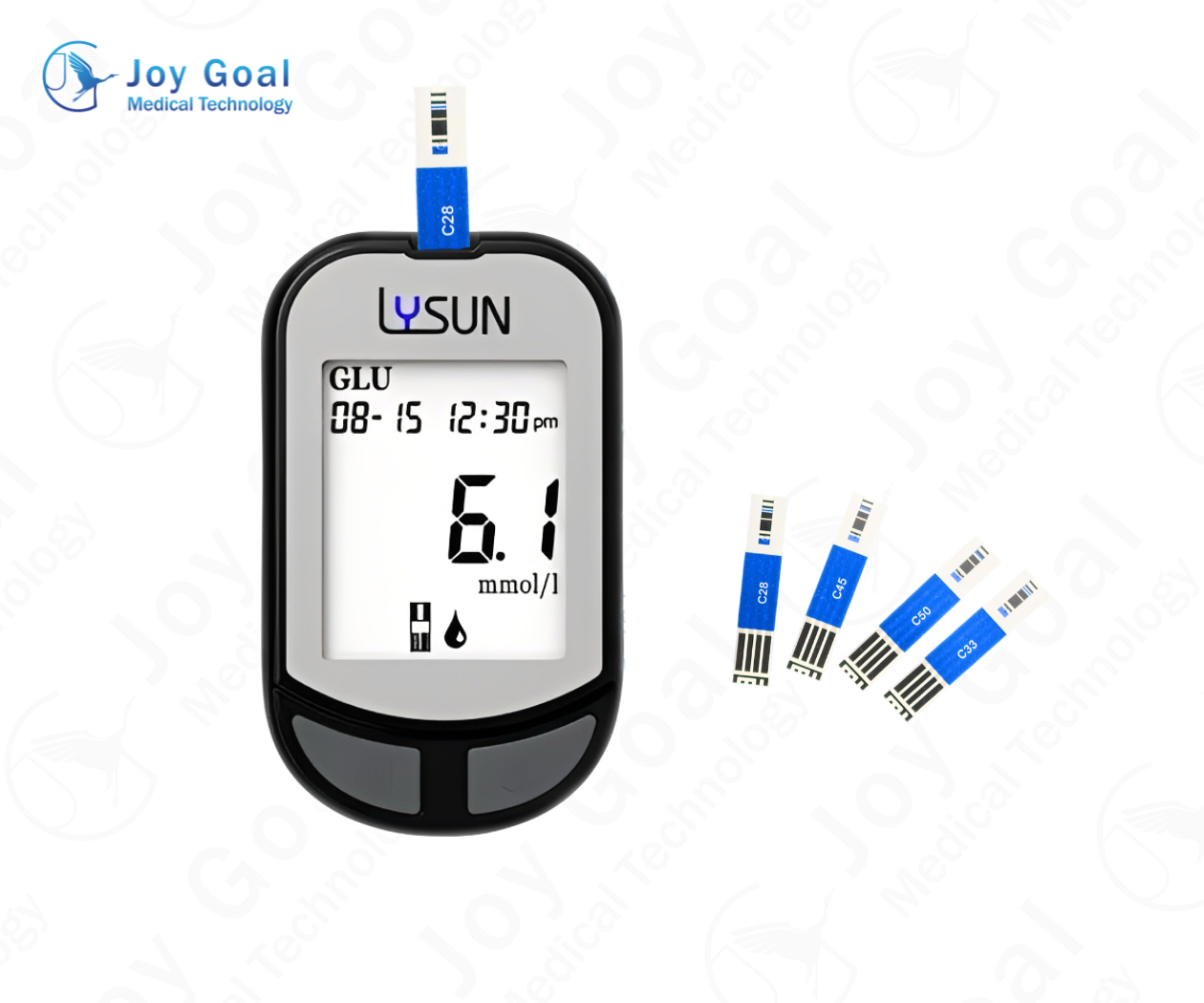

Multi-function Analyzer(Blood Glucose, Uric Acid, Blood Ketone) (GUK-101) is designed to quantitatively measure glucose,uric acid or blood ketone with fresh capillary whole blood or venous whole blood.
To ensure accurate results:
• Read instructions before use.
• The meter should only be used with test strips which are the same trade mark as the meter
• For in vitro diagnosis only. Your meter can only be used for in vitro testing. For professional use.
• Do not change your medication or treatment plan without the permission of doctor.
• Keep out of reach of children.
• Please use the meter in the way suggested by the manufacturer, or the meter may be impaired.
Principle of measurement
The test is based on electrochemical sensor technology. The meter measures the electrical current generated by the reaction of glucose,uric acid or blood ketone with the reagent of the strip,and displays the corresponding blood glucose,uric acid and blood ketone level. The intensity of the current produced by the reaction depends on the amount of glucose ,uric acid or blood ketone in the blood sample.
Main Features of Blood Glucose Monitoring System
• Pre-suction siphon designed test strip, easy and convenient to use
• Tiny blood sample
• Fast measuring time
• Easy to read large LCD
• Automatic 7, 14 & 28 day averages
Specfication
| Feature | Specifications |
|---|---|
| Methodology | Electrochemistry |
| Measurement Range | Glucose:20~600mg/dL, 1.1~33.3mmol/L; Uric acid:3~20mg/dL, 179~1190μmol/L; Blood ketone:0-83.3 mg/dl, 0-8 mmol/l; |
| Specimen | Glucose: Approximate 0.5 microlitre; Uric acid: Approximate 3 microlitre; Blood ketone: Approximate 1 microlitre; |
| Test Time | Glucose: 5 seconds Uric acid: 30 seconds Blood ketone: 5 seconds |
| Memory | Glucose:200 records Uric acid:100 records Blood ketone:100 records |
| Automatic Shut Off | After 1 minute of inactivity |
| Battery life | Approximately 1000 tests |
| Units of Measurement | mmol/l,μmol/l or mg/dl; Non-switchable unit |
| Meter Size | (84.7*52*18)mm(L*W*H) |
| Weight | Approximately 50 g (excluding battery) |
| Meter storage and transportationt conditions | 0 - 55°C; ≤90% RH |
| System Operating Conditions | 8℃~37℃; indoor only |
