Renal Function Analysis Meter (RFM-202)
introduction
| Modle | RFM-202 |
|---|---|
| Analysis Items | Creatinine (CR) |
| Specimen | Whole blood(peripheral and venous human whole blood), plasma and serum |
| Features | Multi-function, Wide Test Range, Accurate, Quality Assurance, Rechargeable, BlueTooth Sync, Protable Printer |
| Power Source | 3* AAA batteries |
Feature
Multi-function
One meter with 3 Test functions
Wide Range
Maximum measurement range
in same function POCT meter
Accurate
Same level of accuracy with Biochemical Analyzer
battery replacement
Use 3 AAA batteries
and support Long-Enduance
Portable Printer
Contect with customized portable printer get tets result
Quality Assurance
Excellent quality and advanced
technology

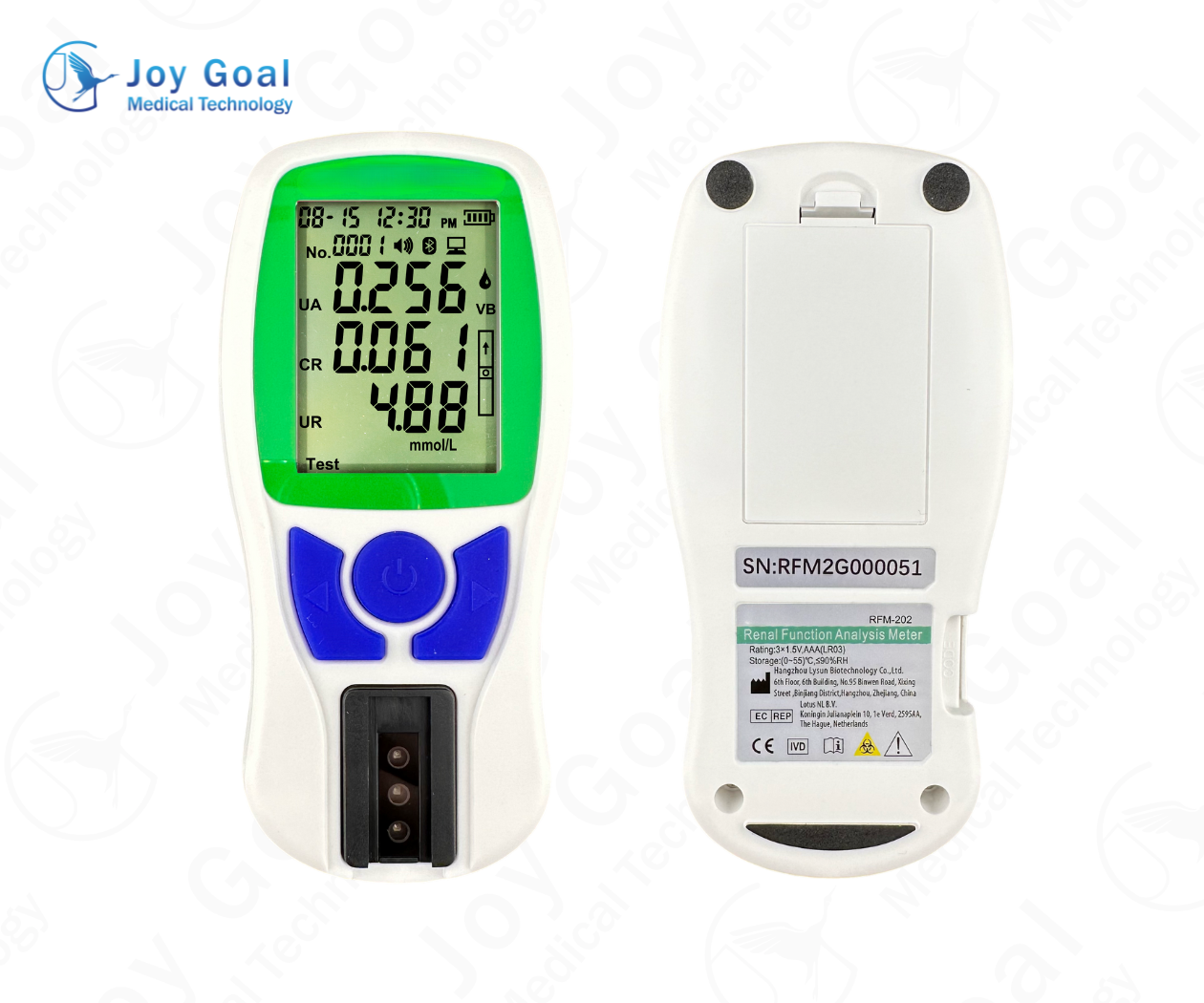

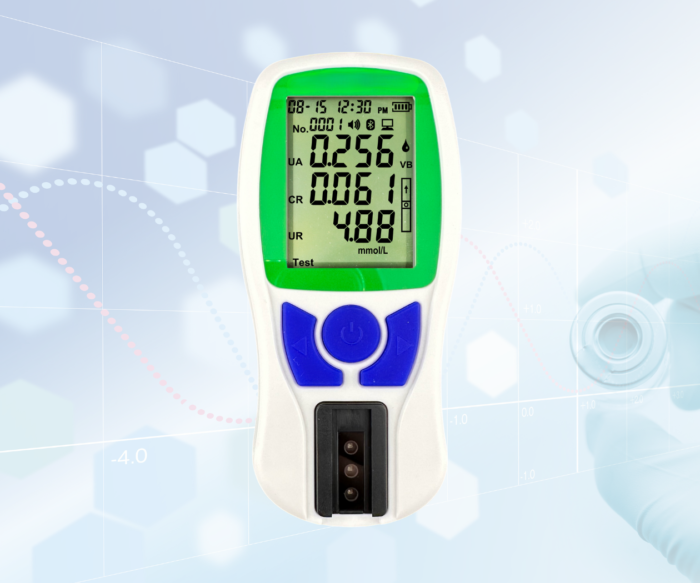

The Renal Function Analysis Meter is intended for the quantitative determination of creatinine (CR) in capillary blood, venous whole blood, plasma and serum. The easy to operate system consists of a portable meter that analyzes the intensity and color of light reflected from the reagent area of a Test strip, ensuring quick and accurate results.
The Renal Function Analysis Meter provides results. The Renal Function Analysis Meter can store up to 500 results and records.
To ensure accurate results:
-
Read instructions carefully and complete any necessary training before use.
- Use the code chip that is included in each box of test strips.
- Only use the Renal Function Test strips with the Renal Function Analysis Meter.
- For in vitro diagnostic use only. Your blood Renal Function monitoring system is only to be used outside the body for testing purposes.
- For professional use.
- Keep out of reach of children.
Principle of measurement

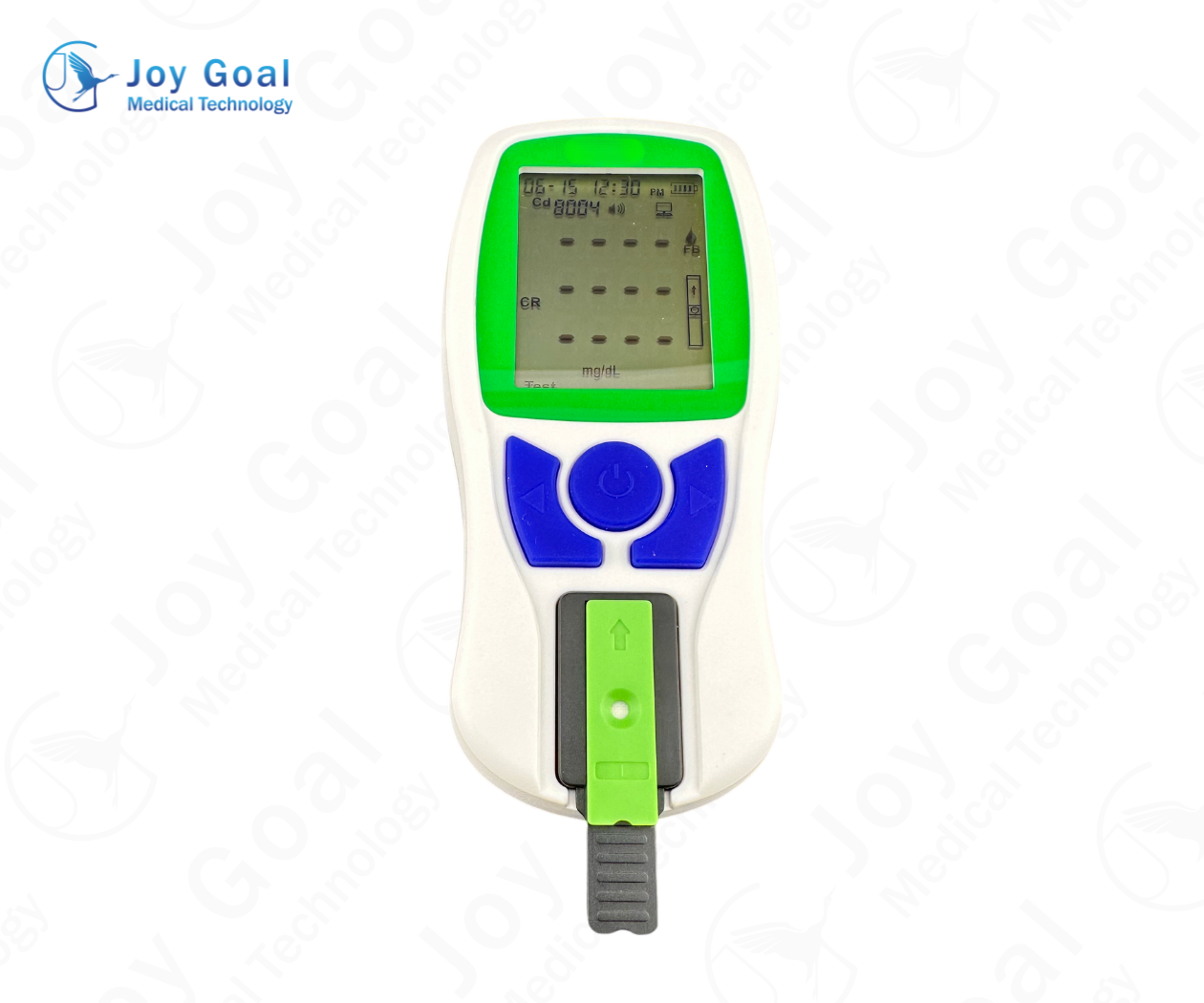

The analyzer applies the principle of photochemistry and is used with creatinine test strips (CRS-101、CRS-102) .The whole blood sample to be tested is added into the sample area of the strip. In the process of rapid infiltration, blood cells are filtered out or dissolved. The substrate reacts with enzymes and chemicals in the reaction layer and lead to the color change, then the color intensity is proportional to the concentration of the substance.
Specfication
| Feature | Specifications |
|---|---|
| Test Time | Creatinine (CR) ≤5 min
|
| Measurement Range | CR: 0.044mmol/L ~ 1.320mmol/L (0.50mg/dL ~ 14.93mg/dL) |
| Specimen Volume | 10 μL / 35 μL (refer to the test strip manual) |
| Power Source | AAA battery Note: AAA battery needs to be replaced after running out of power |
| Methodology | Reflectance Photometer |
| Specimen | Whole blood(peripheral and venous human whole blood), plasma and serum |
| Units of Measurement | mg/dL, mmol/L |
| Memory | 500 records |
| Automatic Shut Off | 5 minutes after last use |
| Meter Size | 135mm×66mm×19mm |
| Weight | 90g |
| Meter storage and transportationt conditions | 0 - 55°C; ≤90% RH |
| System Operating Conditions | 10 - 35°C; ≤80% RH; indoor only |
Accurate
Renal Function Analysis Items
Creatinine (CR)
Procedure

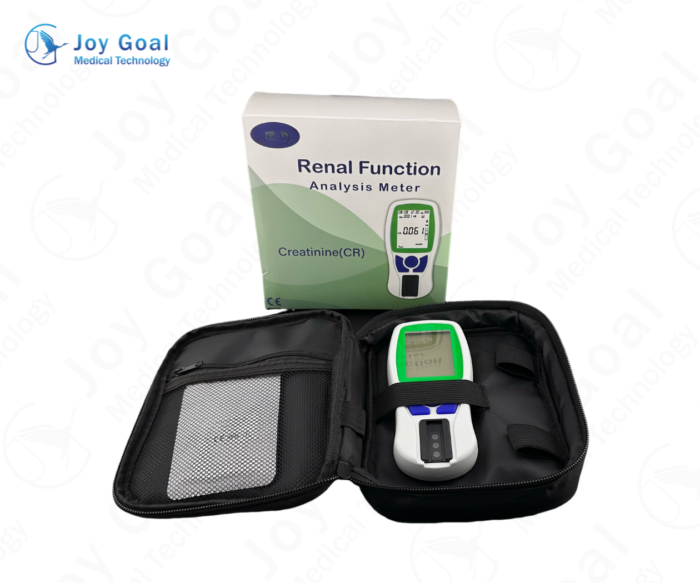

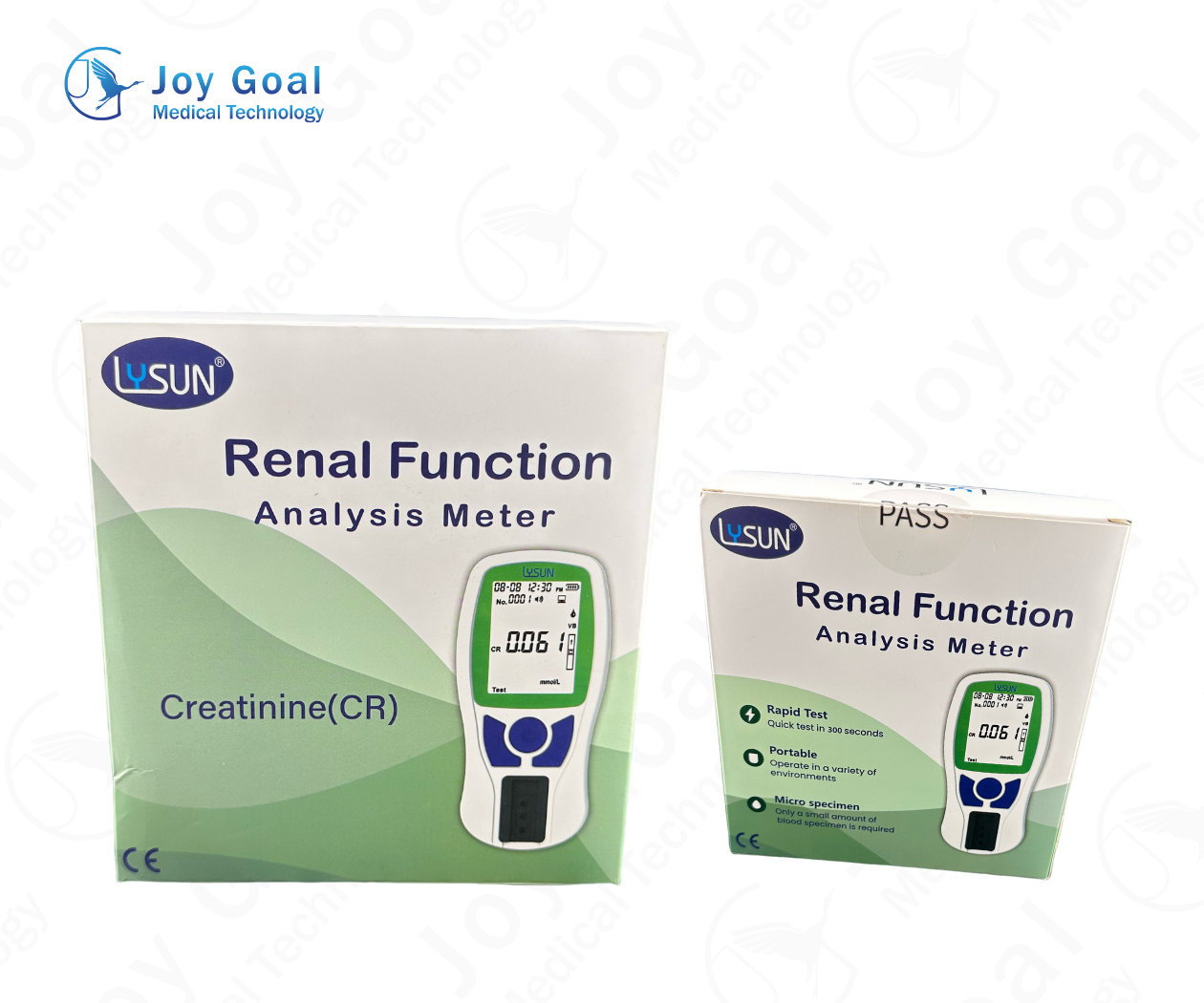

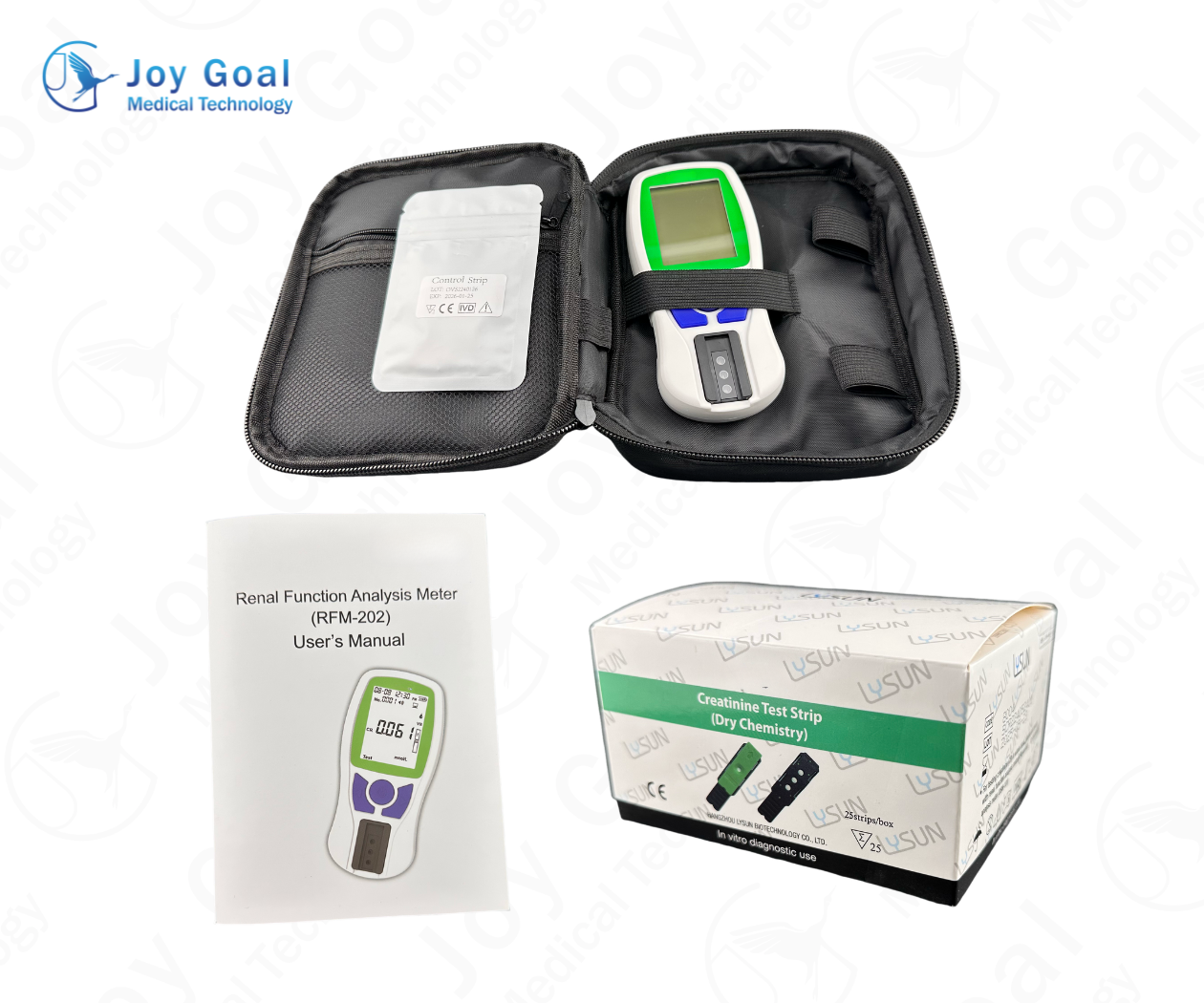

Packing
