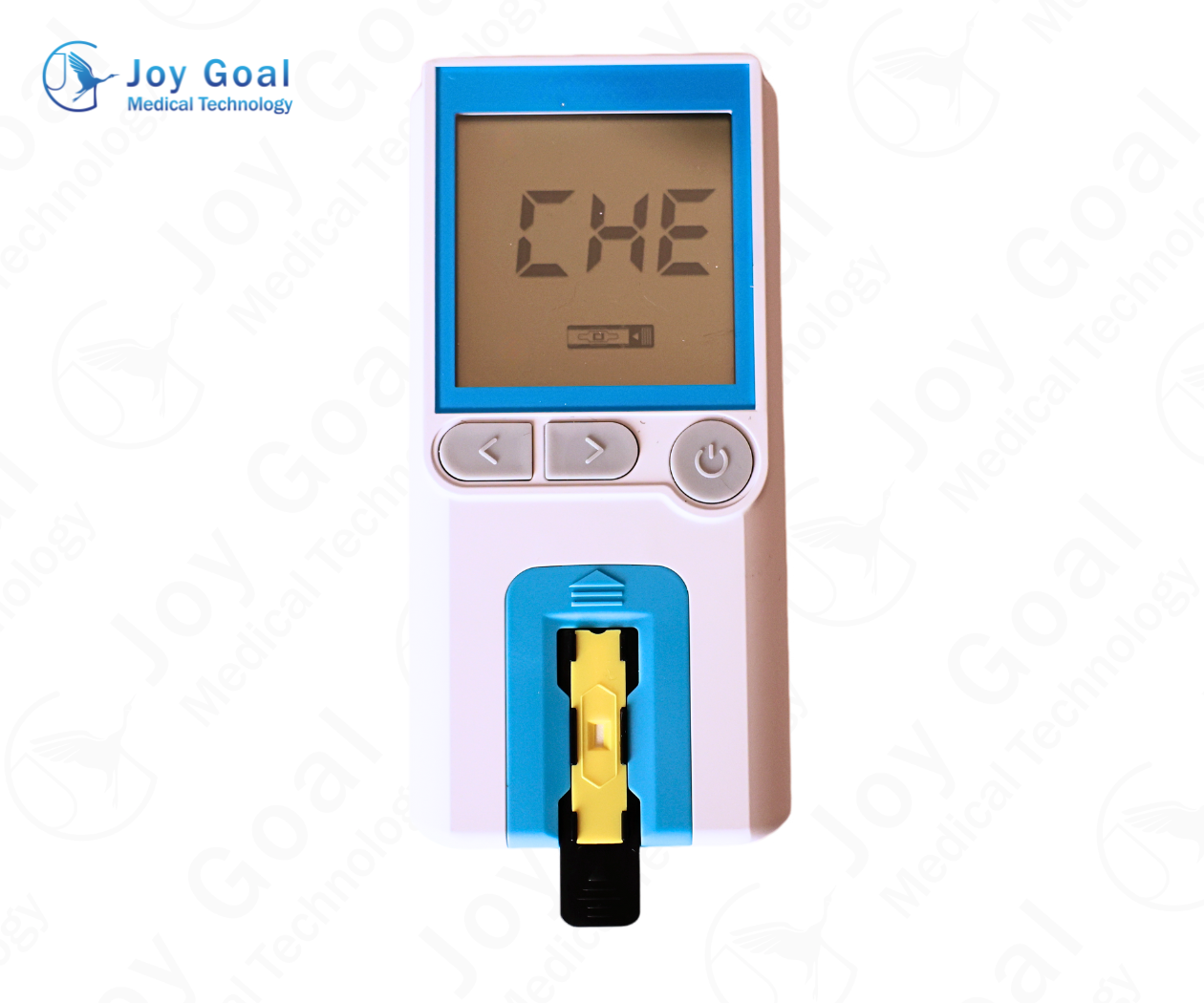

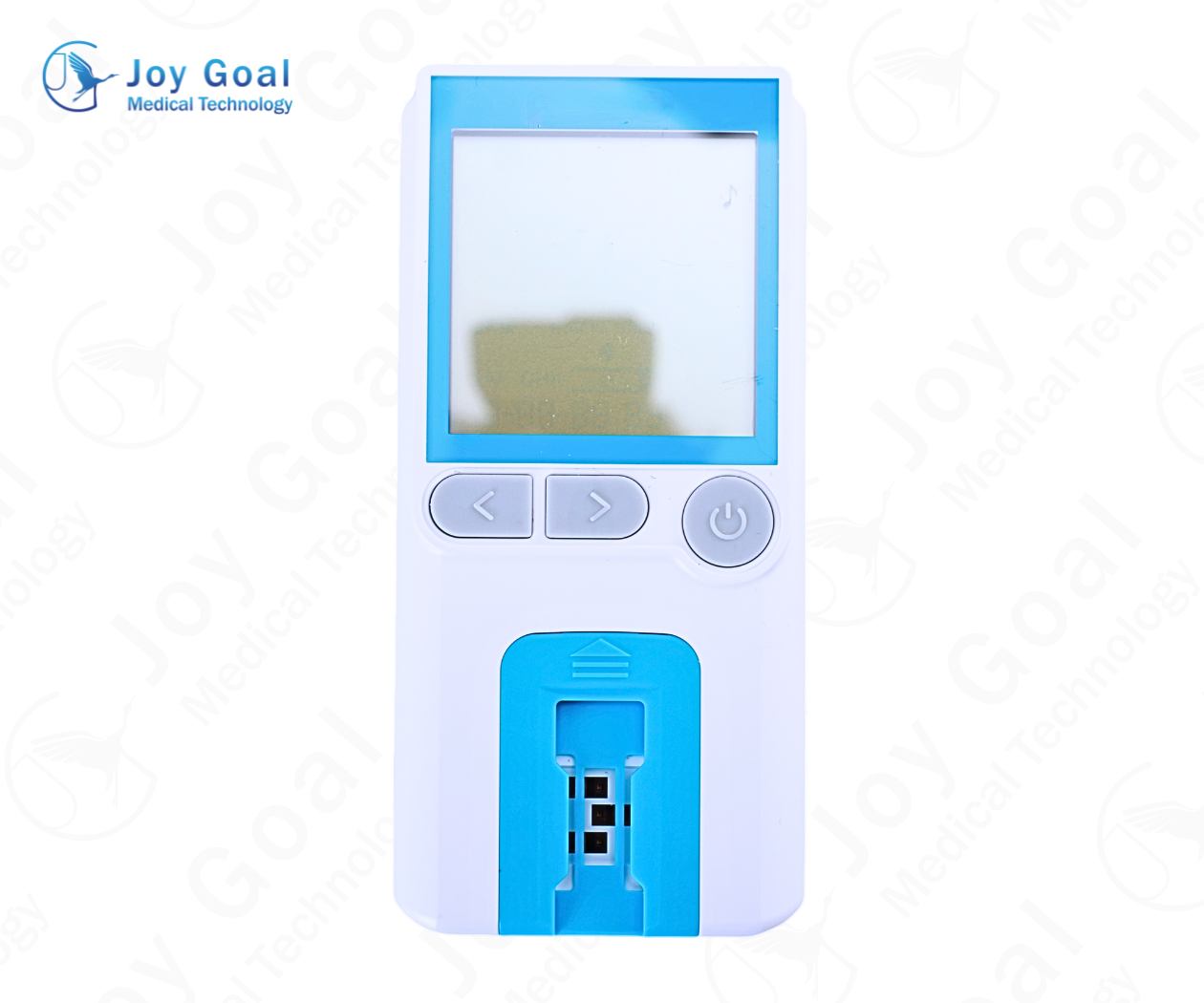

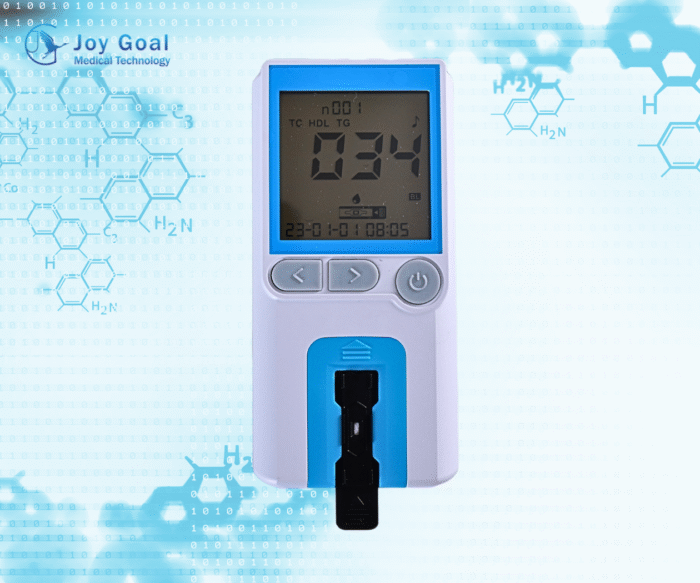

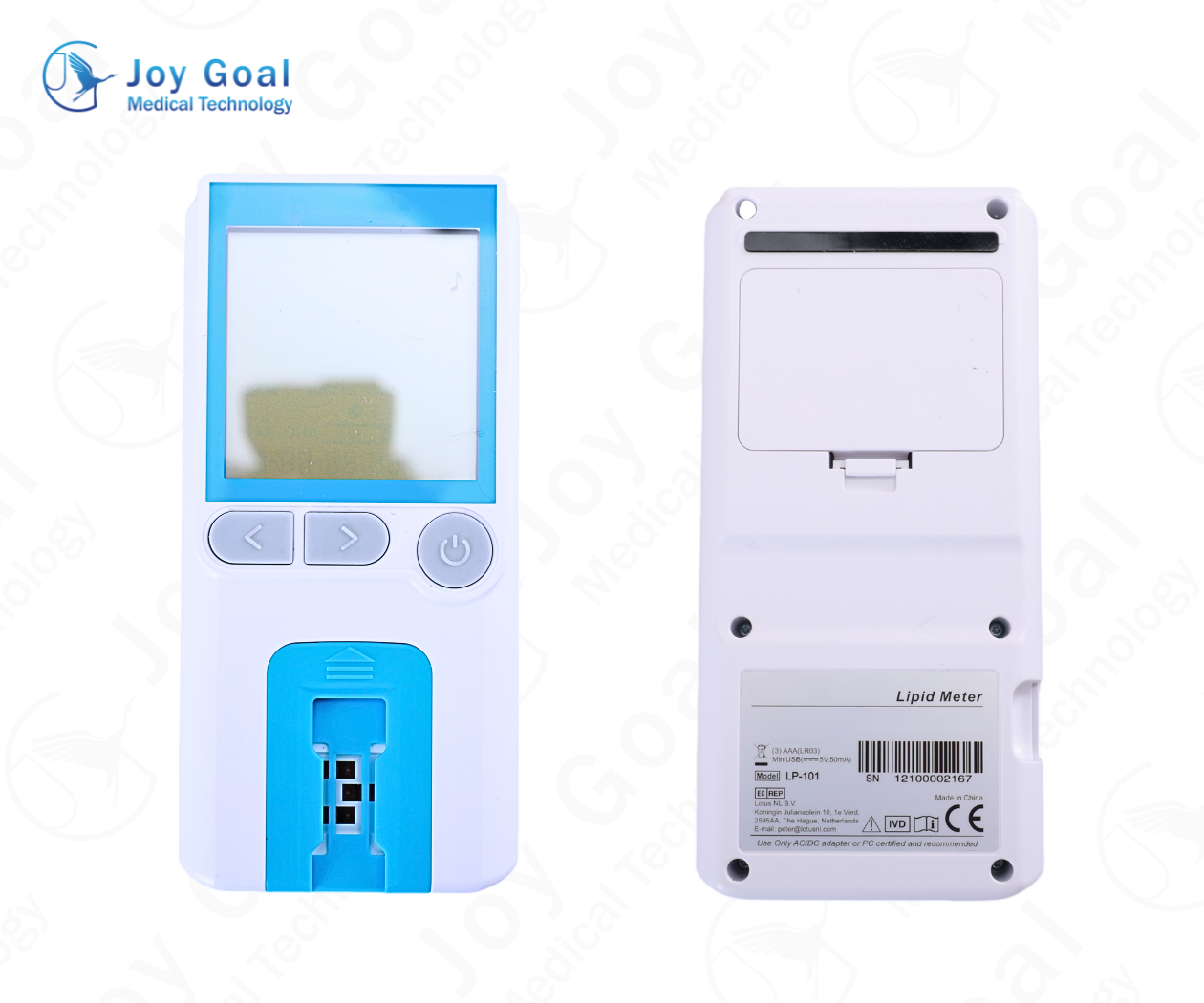

Lipid Testing System (LP-101)

introduction

Modle

LP-101

Analysis Items

Total Cholesterol (TC), High Density Lipoprotein (HDL), Triglyceride (TG), Low Density Lipoprotein (LDL)

Specimen

Whole blood(peripheral and venous human whole blood), plasma and serum

Features

Multi-function, Wide Test Range, Accurate, Quality Assurance, Protable Printer

Power Source

3 x AAA battery

Feature

Multi-function

One meter with 3 Test functions

Wide Range

Maximum measurement range
in same function POCT meter

Accurate

Same level of accuracy with Biochemical Analyzer

Quality Assurance

Excellent quality and advanced
technology

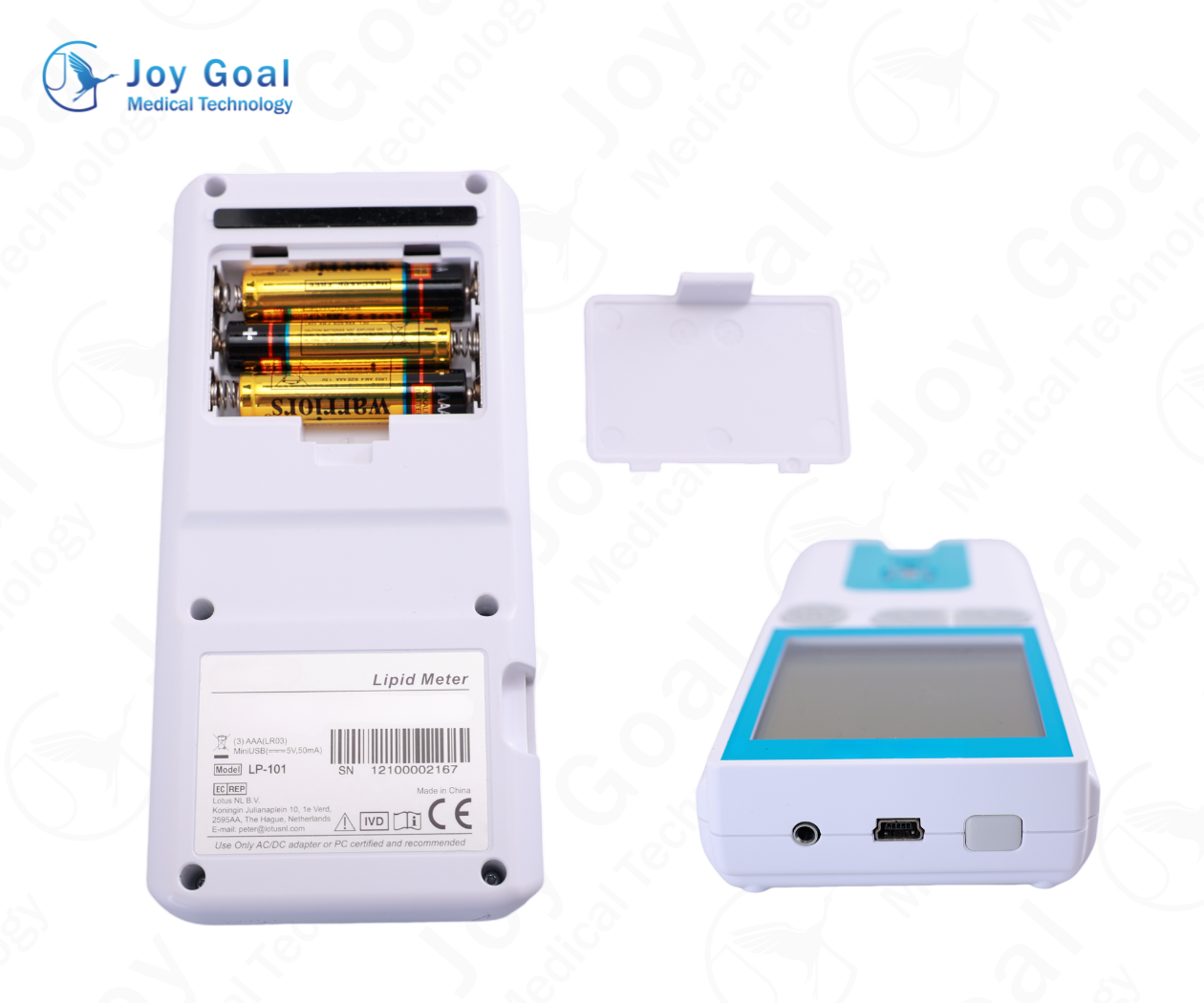

battery replacement

Use 3 AAA batteries
and support Long-Enduance

Portable Printer

Contect with customized portable printer get tets result

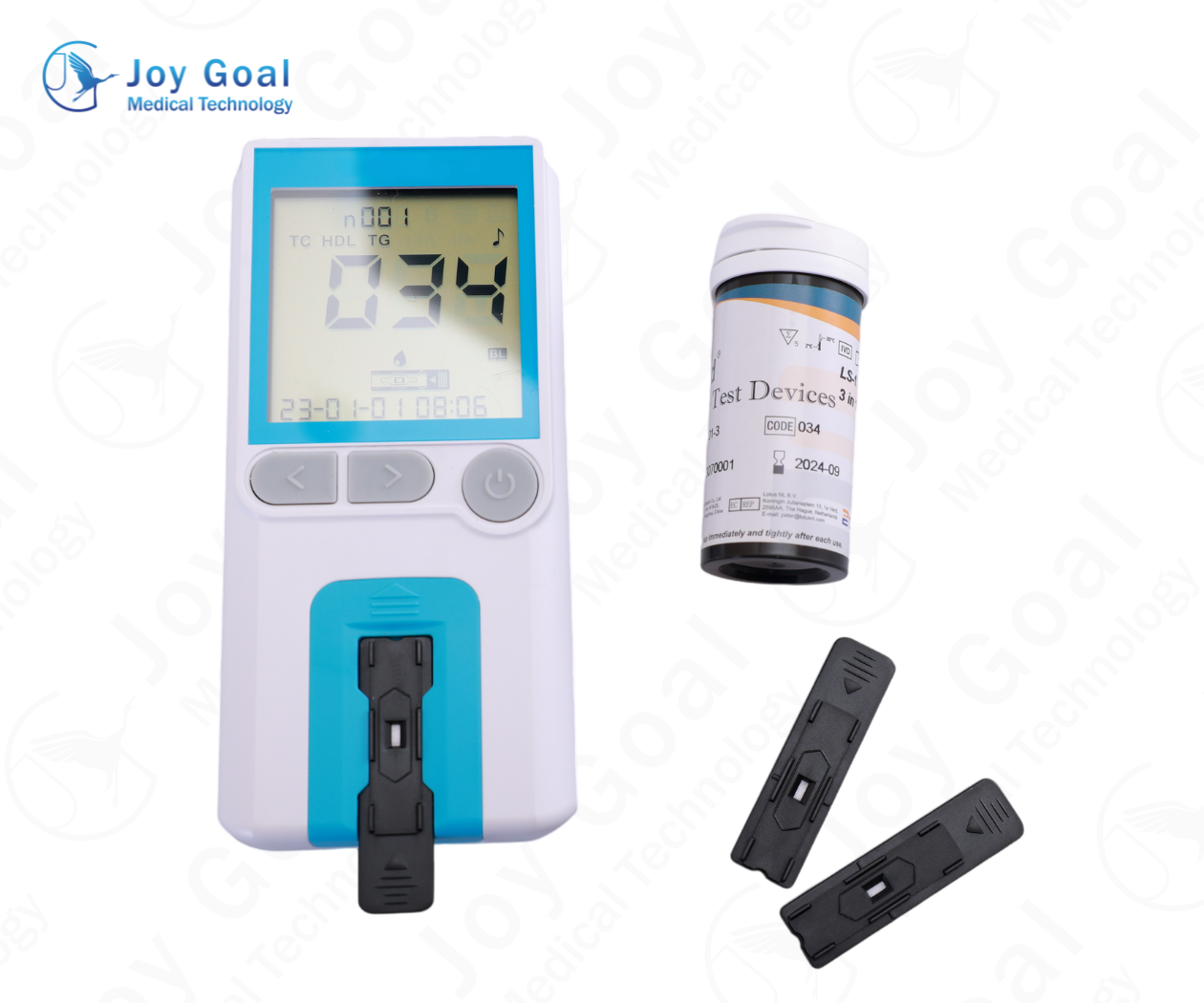

The Lipid Testing System is intended for the quantitative determination of Total Cholesterol (TC), High Density Lipoprotein Cholesterol (HDL), Triglycerides (TG), and the calculated ratio of TC/HDL and Low Density Lipoprotein Cholesterol (LDL) in capillary and venous human whole blood, plasma, and serum. The easy to operate system consists of a portable meter that analyzes the intensity and color of light reflected from the reagent area of a test device, ensuring quick and accurate results.There are two models available: LP-101 and LP-102.

The Lipid Testing System provides results in less than 2 minutes. The meter can store up to 200 results and records can be transferred to a computer for further analysis using the USB port. For Model LP-102, The records can also be transferred to a mobile terminal by bluetooth. For The meter can be operated by 3 AAA (1.5V) batteries.

To ensure accurate results:
  • Read instructions carefully and complete any necessary training before use

  • Use the code chip that is included in each box of test devices.

  • Only use the Lipid Test Devices with the Lipid Meter.

  • For in vitro diagnostic use only.

  • Sample type: Fresh capillary blood, heparinized or EDTA venous whole blood, serum and heparinized plasma can be tested.

  • Please test within the expired date of all components.

Principle of measurement

The analyzer applies the principle of photochemistry and is used with blood lipid test strips (LPS-101 TCS-101 TGS-101 HLS-101) .The whole blood sample to be tested is added into the sample area of the strip. In the process of rapid infiltration, blood cells are filtered out or dissolved. The substrate reacts with enzymes and chemicals in the reaction layer and lead to the color change, then the color intensity is proportional to the concentration of the substance.

The analyzer tests the color intensity of the reaction end point at the wavelength of 620nm, the substance concentration is calculated by the reflection coefficient. When the test strip is LPS-101,with the following formula the concentration of low density lipoprotein cholesterol in (LDL) is calculated, the ratio of TC and HDL can also be calculated.

LDL=TC-HDL-TG/5 (mg/dL)

or

LDL=TC-HDL-TG/2.2 (mmol/L)

Specfication

  • Total Cholesterol (TC)
  • High Density Lipoprotein Cholesterol (HDL)

  • Triglycerides (TG)

  • Low Density Lipoprotein Cholesterol (LDL)

FeatureSpecifications
MethodologyReflectance Photometer
Test TimeTotal Cholesterol (TC), High Density Lipoprotein Cholesterol (HDL), Triglycerides (TG)  ≤2 min;
Measurement Range
  • TC: 2.59mmol/L ~ 12.93 mmol/L (100mg/dL ~500 mg/dL )
  • HDL: 0.39mmol/L ~ 2.59 mmol/L (15mg/dL ~ 100 mg/dL)
  • TG: 0.51mmol/L ~ 7.34mmol/L (45mg/dL ~ 650 mg/dL)
SpecimenWhole blood(peripheral and venous human whole blood), plasma and serum
Specimen Volume10 μL for individual test; 25 μL for 3-in-1 test
Units of Measurementmg/dL, mmol/L
Power SourceBatteries: 3 AAA (LR03)
Mini USB, 5V dc, 50 mA, Use only AC/DC adapter or PC certified and recommended.
Battery Life85 hours or 1,000 tests
Memory200 records
Automatic Shut Off5 minutes after last use
Display Size50 mm × 50 mm (1.97” ×1.97”)
Meter Size142 mm × 70 mm × 27 mm
Weight130 g (without batteries)
Data TransferUSB, bluetooth (only for LP-102)
Meter storage and transportationt conditions0 - 50ºC (32 -122ºF); ≤ 90% RH; height≤ sea level 2000m
System Operating Conditions15 - 40ºC (59 -104ºF); ≤ 90% RH; height≤ sea level 2000m

Accurate

Blood Lipid Analysis Items

Total Cholesterol (TC)

High-density Lipoprotein (HDL)

Triglycerides (TG)

Procedure

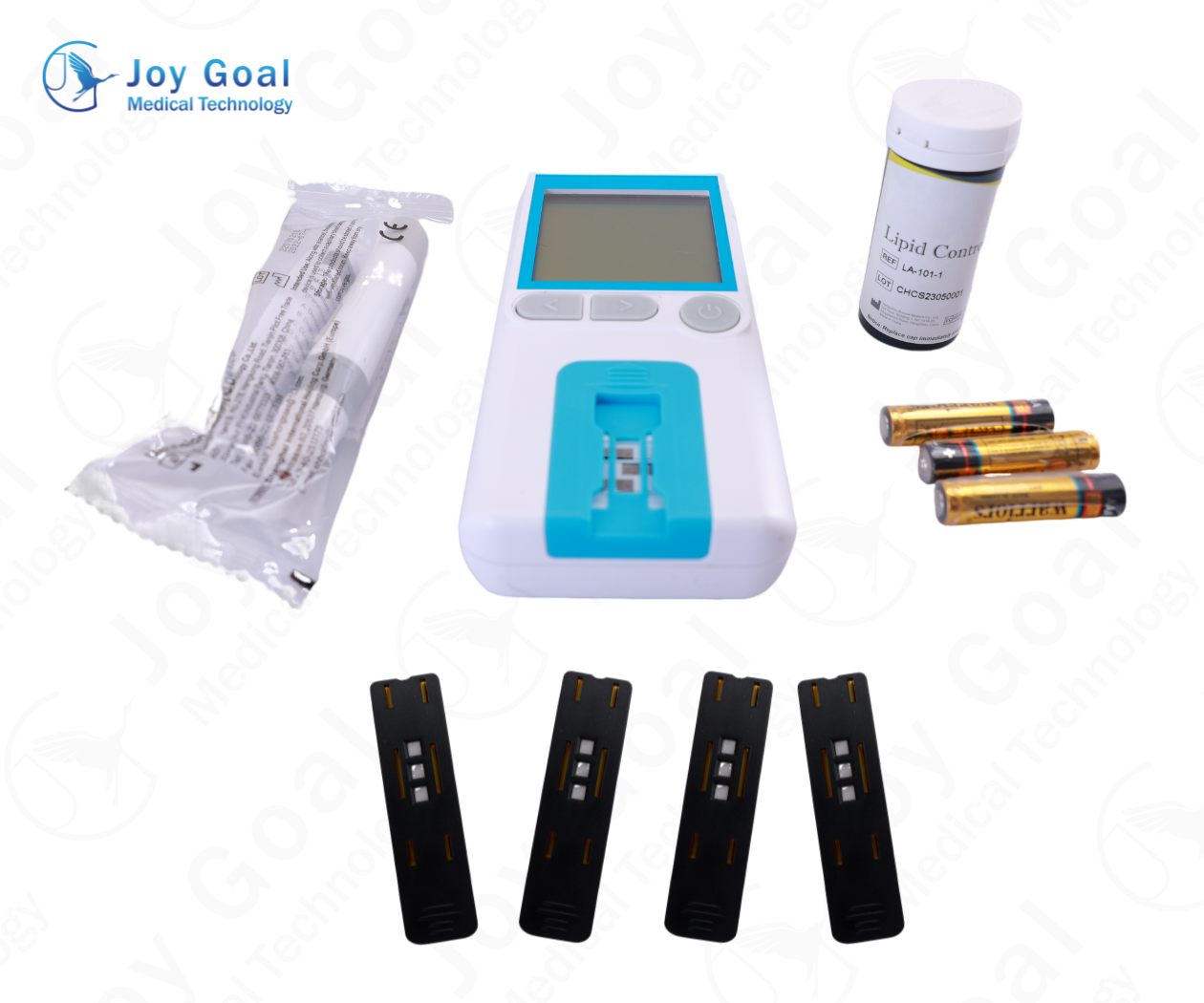

Packing

Contents

  • 1*Blood Lipid Analysis Meter

  • 1*Carrying Bag
  • 1*User Manual Book
  • 1*Quality Guarantee Card
  • 1*QC Pass Card

Matched Test Strip
